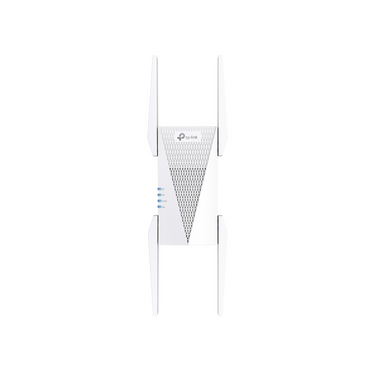

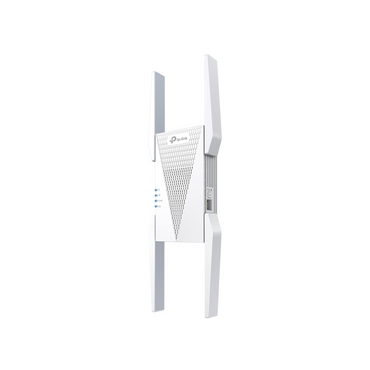

TP-Link RE815X AX5400 Tri-Band Wi-Fi 6 Range Extender
₱8,490.00
₱9,995.00
RE815X AX5400 Tri-Band Wi-Fi 6 Range Extender Faster AX5400 Wi-Fi 6: 2402 Mbps(5 GHz)+ 2402 Mbps(5 GHz)+574 Mbps(2.4 GHz).† Tri-Band: Provides 3 separate bands for less congestion, larger capacity, and faster speeds....
Pre-order now! Leave a message in our messenger.
RE815X
AX5400 Tri-Band Wi-Fi 6 Range Extender
- Faster AX5400 Wi-Fi 6: 2402 Mbps(5 GHz)+ 2402 Mbps(5 GHz)+574 Mbps(2.4 GHz).†
- Tri-Band: Provides 3 separate bands for less congestion, larger capacity, and faster speeds.
- 160 MHz Channel Width: Expands bandwidth to double the network speed of traditional 80 MHz.‡
- More Devices Connected: Connects up to 96 devices simultaneously.△

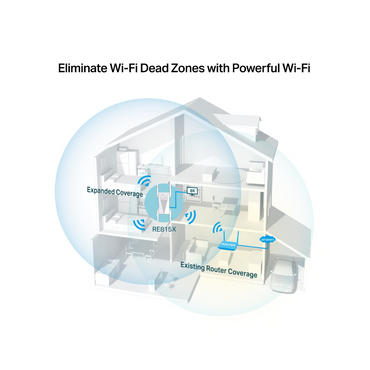

- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇
- AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
Specifications:
| HARDWARE FEATURES | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Button | • WPS Button • Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 23W |
| Dimensions ( W x D x H ) | 4.2×2.2×13.7 in. (106.6×56.7×348.2 mm) |
| Antenna | 4 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | • IEEE 802.11a/n/ac/ax 5GHz • IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | • 574 Mbps at 2.4 GHz • 2402 Mbps at 5 GHz-1 • 2402 Mbps at 5 GHz-2 |
| Working Modes | Range Extender / Access Point |
| Reception Sensitivity | 5GHz-1 & 5GHz-2: 11ax HE20 MCS0: -91dBm ; 11ax HE20 MCS11: -61dBm 11ax HE40 MCS0: -88dBm ; 11ax HE40 MCS11: -58dBm 11ax HE80 MCS0: -86dBm ; 11ax HE80 MCS11: -55dBm 11ax HE160 MCS0: -83dBm ; 11ax HE160 MCS11: -52dBm 2.4GHz: 11ax HE20 MCS0: -95dBm ; 11ax HE20 MCS11: -64dBm 11ax HE40 MCS0: -93dBm ; 11ax HE40 MCS11: -62dBm |
| Wireless Functions | • Enable/Disable Wireless Radio • DFS (the latest firmware and hardware version is required) • Access Control • LED Control • Power Schedule • Wi-Fi Coverage Adjustment |
| Wireless Security | • WPA • WPA2 • WPA3 |
| Transmission Power | FCC: • <26 dBm {2.4 GHz }; • <23.5 dBm {5.25 GHz~5.35GHz & 5.47 GHz~5.725 GHz}; • <27 dBm {5.15GHz~5.25 GHz &5.725 GHz~5.825 GHz} |
| Mesh Technology | EasyMesh-Compatible |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

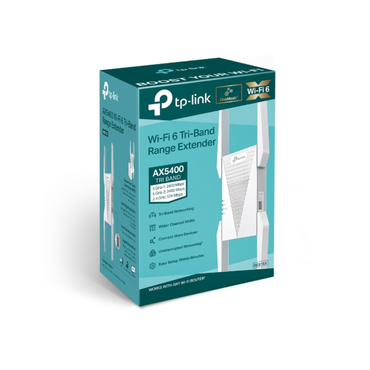

| Package Contents | • Wi-Fi Range Extender RE815X • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
